1.5mm-10mm Electrical Solar Cable 800V 1800V Photovoltaic Solar Power Cables

Brand Name : JinHong

Model Number : PV1-F

Place of Origin : Anhui China

MOQ : 100m

Price : 0.12-0.35USD

Payment Terms : T/T

Delivery Time : 3-7

Conductor Material : Copper

Jacket : XLPE

Type : Low Voltage,Medium Voltage,High Voltage,Insulated,1-5A

Conductor material : Copper,Aluminum,Tinned copper wire,Tinned),Fine stranded Tinned copper conductor

Application : Industrial,Construction,Power Station,PV,Photovoltaic system

Insulation material : XLPE,PVC,Rubber,PE,PFA

Color : Black,brown,Red,blue,Black and red

Product name : 4mm Photovoltaic Solar DC Cable,Solar Cable,Inverter cable,Electric/Power Cable,Portable Cord

Standard : BS6004IEC227,IEC60502,BS EN 50396,ASTM,IEC 60228

Rated voltage : AC 600/1000V DC 1000/1800V,600V,0.6/1KV,19/33KV,600/1000 Volts solar cable

Core : Multi-core,twin cores,3 Core,Single solar cable,single core

Conductor : Tinned Copper,Copper Core,Flexible Copper,Fine stranded Tinned copper conductor

Voltage : 0.6/1kV,1000/2000V,600V,300/500V 450/750V 0.6/1KV,300V-1100V

Sheath : XLPE Halagen-free,flame retardant compound,Rubber,LSOH,Halogen-free cross-linked

Insulation : XLPE PE PVC,Halogen-free cross-linked compound,XLPE Insulation,Rubber Compound

Conductor type : Strandard Tinned Conductor,Aluminium,Stranded,ACSR

Name : ABC cable,solar cable,Solar Power

Sample : Free

Packing : Carton,Soft package,Wooden drum or rolls

Number of cores : Single core

Contact Now

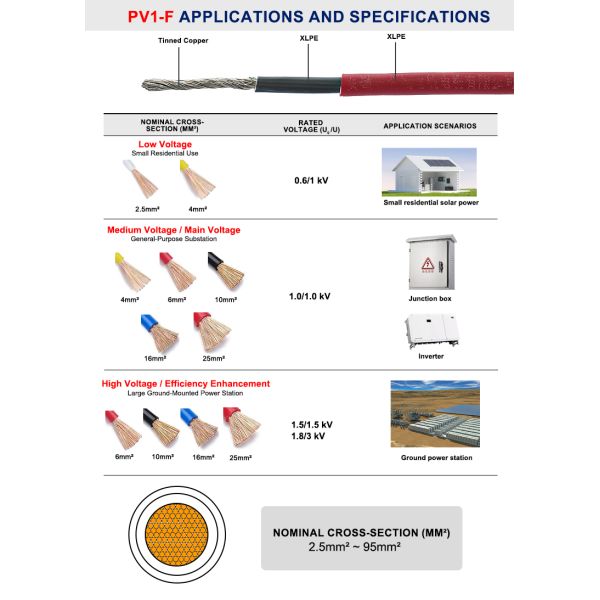

PV1-F Single-Core Photovoltaic Cable
PV1-F is a Single-Core Photovoltaic Cable specifically engineered for solar power systems, delivering exceptional weather resistance, UV protection, and electrical performance for DC side connections in photovoltaic installations.
Cable Designation Breakdown
  • PV: Photovoltaic
  • 1: Single-Core
  • F: Flexible (Fine-Stranded Copper Conductor)
Primary Applications
  • Solar Panel Arrays: Interconnections between PV modules
  • DC Wiring: Connections from solar panels to inverters or combiner boxes
  • Outdoor Installations: Rooftop PV systems, solar farms, and ground-mounted installations
  • Renewable Energy Systems: Battery storage connections and charge controllers
Key Advantages
  • Solar-Optimized: Specifically engineered for PV systems with high UV and weather resistance
  • Flexibility: Easy installation around PV modules and in tight spaces
  • Durability: Tinned copper conductor resists corrosion in humid environments
  • Safety: Flame-retardant and halogen-free options reduce fire risks
PV1-F is the industry standard for solar DC wiring. For higher voltage requirements in utility-scale projects, consider PV1-F1.8 kV variants. Custom colors and conductor sizes are available. Consult technical datasheets for system-specific recommendations.
Technical Specifications
Nominal Cross-Section (mm²) Conductor Structure (n/mm) Max DC Resistance at 20°C (Ω/km) Reference Conductor Diameter (mm) Reference Cable Diameter (mm) Reference Cable Weight (kg/km)
1.5 30/0.25 13.7 1.6 5.1 40.1
2.5 49/0.25 8.21 2.0 5.5 50.9
4 56/0.30 5.09 2.6 6.2 70.3
6 84/0.30 3.39 3.5 7.1 94.6
10 77/0.41 1.95 4.6 9.4 159.1
16 119/0.41 1.24 5.7 10.9 225.7
25 189/0.41 0.795 7.2 12.6 325.8
35 259/0.41 0.565 8.2 13.8 421.8
1.5mm-10mm Electrical Solar Cable 800V 1800V Photovoltaic Solar Power Cables 1.5mm-10mm Electrical Solar Cable 800V 1800V Photovoltaic Solar Power Cables 1.5mm-10mm Electrical Solar Cable 800V 1800V Photovoltaic Solar Power Cables
Frequently Asked Questions
What does PV1-F stand for?
It is a single-core, flexible cable designed specifically for photovoltaic applications.
What is the primary application of PV1-F cable?
It is used exclusively for the DC side of photovoltaic systems to interconnect solar panels and connect them to inverters or combiner boxes.
What are its key environmental resistance features?
PV1-F is engineered for harsh, long-term outdoor exposure:
  • UV & Ozone Resistance: Withstands direct sunlight for 20+ years without cracking
  • Wide Temperature Range: Typically -40°C to +90°C (or up to 120°C short-term)
  • Weather & Moisture Resistance: Performs in rain, snow, and high humidity
  • Chemical Resistance: Resists acids, alkalis, and pollution commonly found in industrial/agricultural environments
What are its electrical specifications?
  • Voltage Rating: DC 1.5 kV (standard for PV systems up to 1500V DC)
  • Conductor: Tinned, fine-stranded copper for flexibility and corrosion resistance
  • Insulation/Sheath: Cross-linked polyolefin (XLPO) or similar halogen-free material
  • Polarity Identification: Available in standard colors (Red for Positive, Black for Negative)
What safety and performance standards does it meet?
PV1-F complies with stringent international PV cable standards:
  • Europe: TÜV 2 PfG 1169 / EN 50618 (The most recognized standard)
  • International: IEC 62930
  • North America: UL 4703 (Sunlight Resistant PV Wire)
Can ordinary cable (like H07RN-F) be used instead?
Not recommended. Ordinary cables are not designed for continuous high DC voltage stress, decades of direct UV exposure, or the specific thermal cycling of PV systems. Using non-PV cable voids system warranties and poses safety risks.
Where exactly is PV1-F installed in a PV system?
  • Module Interconnections: Between solar panels in a string
  • String to Combiner Box: Connecting series strings to a combiner box
  • DC Main Runs: From combiner boxes to the central inverter(s)
  • Suitable for fixed installation on mounting structures, in cable trays, or for free movement within bend radius limits
What are important installation guidelines?
  • Bending Radius: Minimum 4 x cable diameter (very flexible)
  • Installation Temperature: As low as -25°C to -40°C (prevents insulation damage)
  • Connection: Must use PV-specific connectors that are weatherproof and compatible with the cable's outer diameter
  • Securing: Use UV-resistant cable ties or clamps
What are common variants or similar designations?
  • PV1-F 1.8kV: For higher system voltages
  • H1Z2Z2-K (or PV-Wire): Older or alternative designations to the same core standards
  • Multi-core versions exist for specific applications
Why is PV1-F a mandatory choice for solar projects?
It is a critical, system-longevity component that ensures:
  • Safety: Reliable insulation under DC stress and fire conditions
  • Durability: 25+ year service life matching solar panels
  • Performance: Maintains conductivity and insulation integrity over decades
  • Warranty Compliance: Required by panel/inverter manufacturers and insurance providers
1.5mm-10mm Electrical Solar Cable 800V 1800V Photovoltaic Solar Power Cables

Product Tags:

10mm Electrical Solar Cable



1.5mm Electrical Solar Cable



1800V Photovoltaic Solar Power Cables


Wholesale 1.5mm-10mm Electrical Solar Cable 800V 1800V Photovoltaic Solar Power Cables from china suppliers
